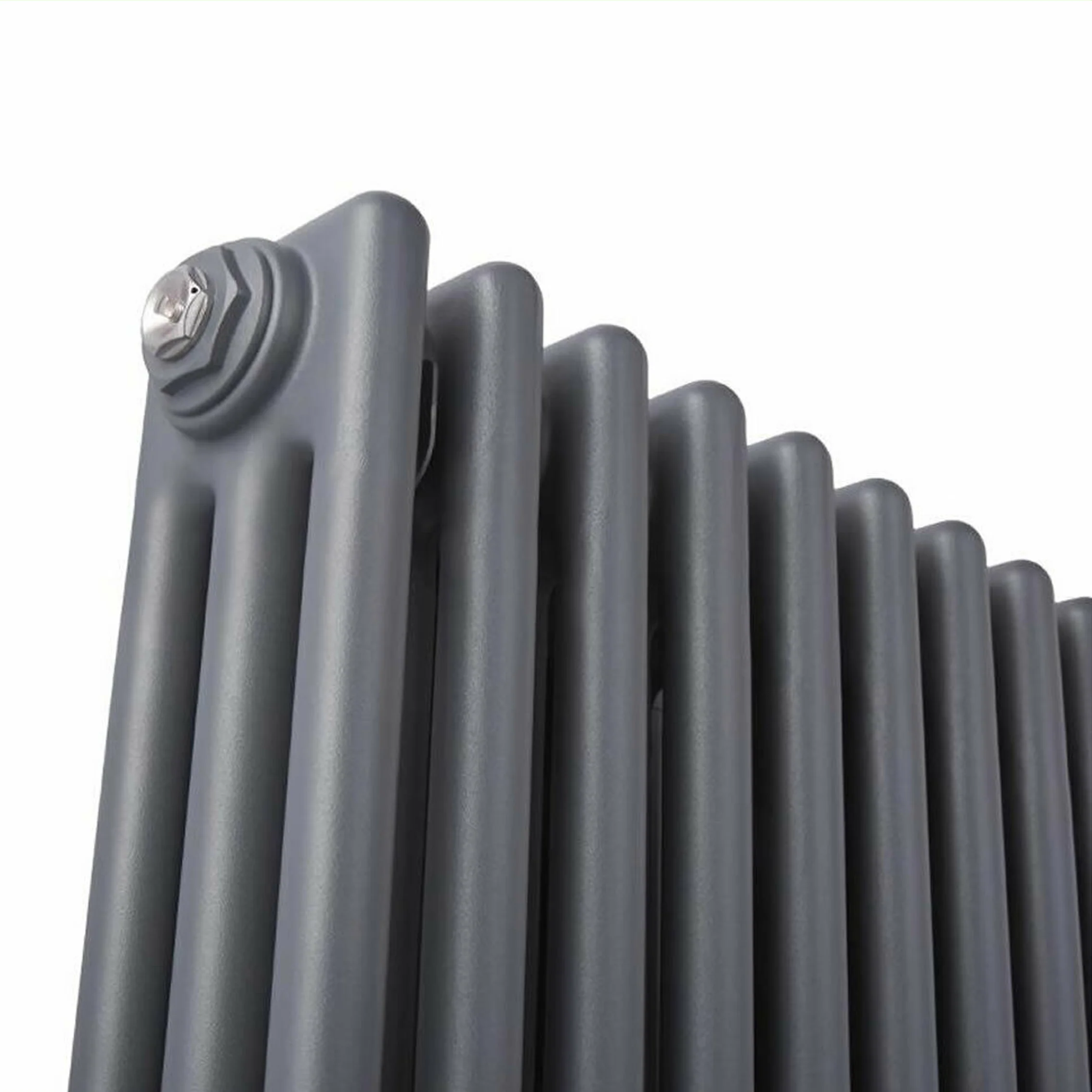

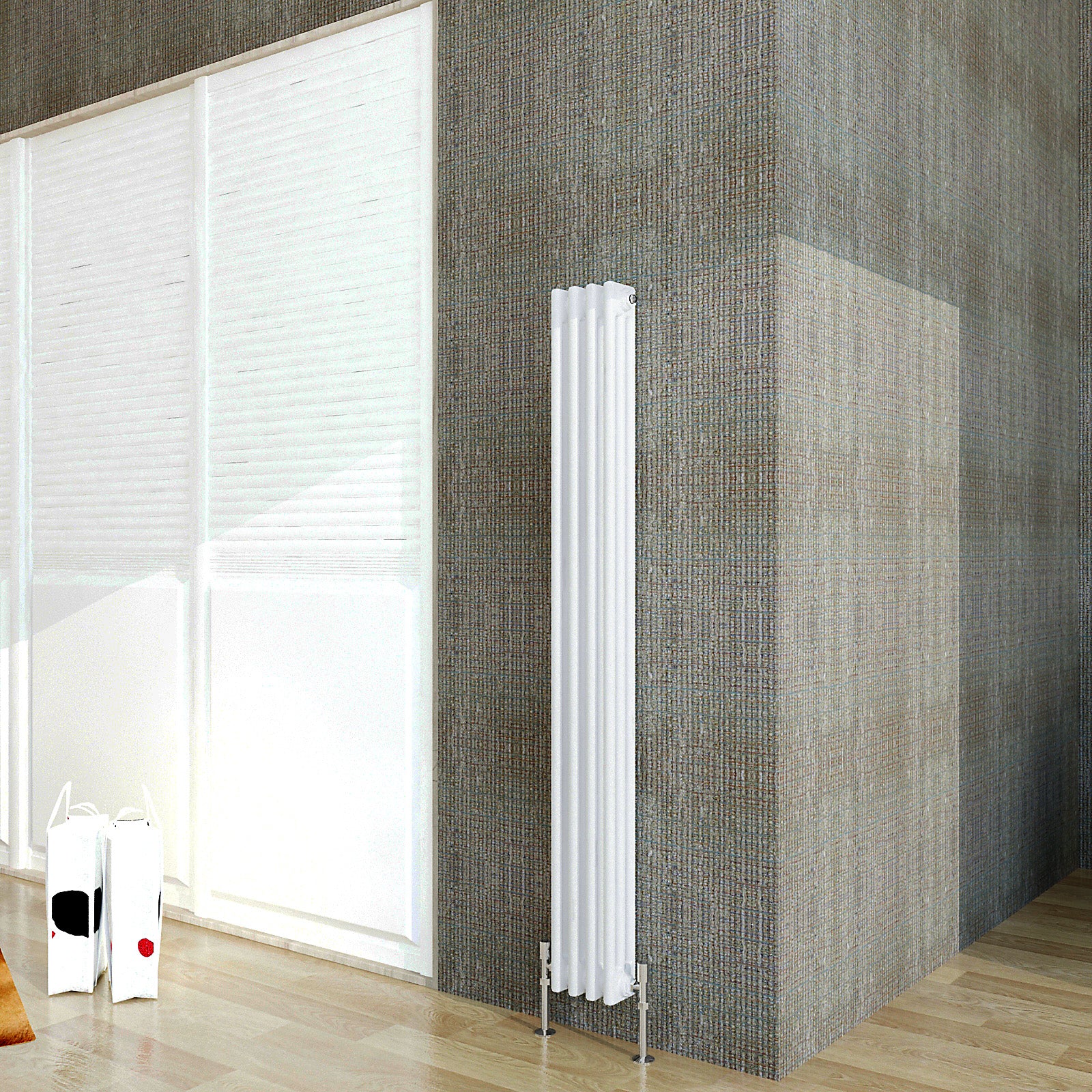

Tall Vertical 2-3 Column Radiator

Description：

• Lifetime Warranty
• Made from 1.6mm Premium Mild Steel
• Triple layered finish
• Color: Anthracite/White/Black
• Fully safety tested.
• Compatible for use on all UK heating systems
• It perfectly matches the decoration style of all rooms such as kitchen, bathroom, bedroom and living room.

---

Features And Details：

• High quality triple layered finish.
• Manufactured in accordance with BS EN 442
• 1/2" inlets and outlets
• Unique hot water circulation structure
• Wall mount installation
• Brackets and fixings included
• Valves are not included.But can be bought separately.Click here to buy our high quality valves.
• (Note:Anthracite and Black Color Are Matt and  the White Color Is Gloss.)

---

Tall Vertical 3 Column Heating Radiator:

Model	Size (HxW)	Panel	Bars	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU
Traditional Style	1500 x 200 mm	3 Column	4	16.4	852	2276	Click to view
Traditional Style	1500 x 290 mm	3 Column	6	25.6	1278	3051	Click to view
Traditional Style	1500 x 380 mm	3 Column	8	34.7	1701	4143	Click to view
Traditional Style	1500 x 470 mm	3 Column	10	43.3	2121	5257	Click to view
Traditional Style	1500 x 560 mm	3 Column	12	51.9	2543	6009	Click to view
Traditional Style	1800 x 200 mm	3 Column	4	21.2	1004	2626	Click to view
Traditional Style	1800 x 290 mm	3 Column	6	31.1	1506	3817	Click to view
Traditional Style	1800 x 380 mm	3 Column	8	40.8	2007	4906	Click to view
Traditional Style	1800 x 470 mm	3 Column	10	51	2509	6105	Click to view
Traditional Style	1800 x 560 mm	3 Column	12	61.2	3008	7309	Click to view

---

Tall Vertical 2 Column Heating Radiator:

Model	Size (HxW)	Panel	Bars	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU
Traditional Style	1500 x 200 mm	2 Column	4	11.6	612	1807	Click to view
Traditional Style	1500 x 290 mm	2 Column	6	17	920	2455	Click to view
Traditional Style	1500 x 380 mm	2 Column	8	22.4	1221	3202	Click to view
Traditional Style	1500 x 470 mm	2 Column	10	28	1530	3840	Click to view
Traditional Style	1500 x 560 mm	2 Column	12	33.6	1830	4603	Click to view
Traditional Style	1800 x 200 mm	2 Column	4	14.5	736	1854	Click to view
Traditional Style	1800 x 290 mm	2 Column	6	20.9	1105	2783	Click to view
Traditional Style	1800 x 380 mm	2 Column	8	28.2	1468	3691	Click to view
Traditional Style	1800 x 470 mm	2 Column	10	35.2	1834	4611	Click to view
Traditional Style	1800 x 560 mm	2 Column	12	42.3	2201	5534	Click to view

---



*Not recommend to install any pipework before you receive your radiator.

*BTU for reference only, it depends on various elements such as flow temperature and indoor temperature.
